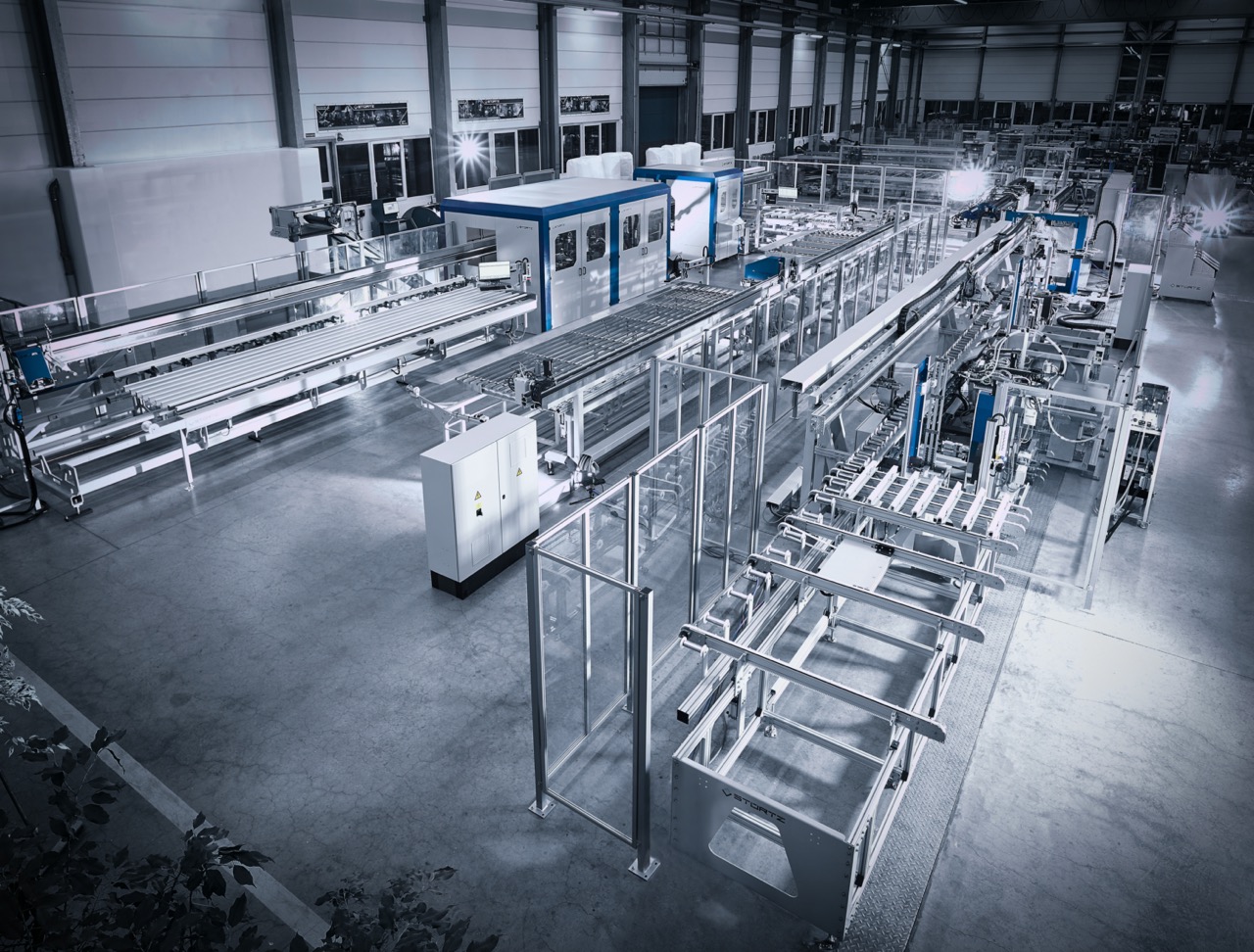

PowerCenter-PP-UL

Products / Bar processing

The Advantages

Complete processing of PVC window and front door profiles with a production capacity of approx. 180 to 220 window units per work shift.
ParallelProcessing: Shorter processing cycles by decoupling the machining on the profile bar
Easy to use and simple data maintenance
Processing data randomly programmable
Profile bar systems PVC/PVC steel reinforced composites
Additional functions such as variable saw, inline printer, seal undercutting and transom cutting station with changer, automatic closing part setting and screwing station and stacking system possible

Exact positioning
due to ZeroPointDetection

Highly dynamic pusher systems
with process decoupling for cycle time reduction

Intuitively operable
Information Management System

TECHNICAL DATA

Magazine feed 12 spaces
Length of profile bar min. 1000 mm
Length of profile bar max. 6500 mm
Cutting length min. 326 mm
Cutting length max. 4006 mm (optional 6006 mm)
Profile view width 130 mm
Profile depth 120 mm (optional 180 mm)
